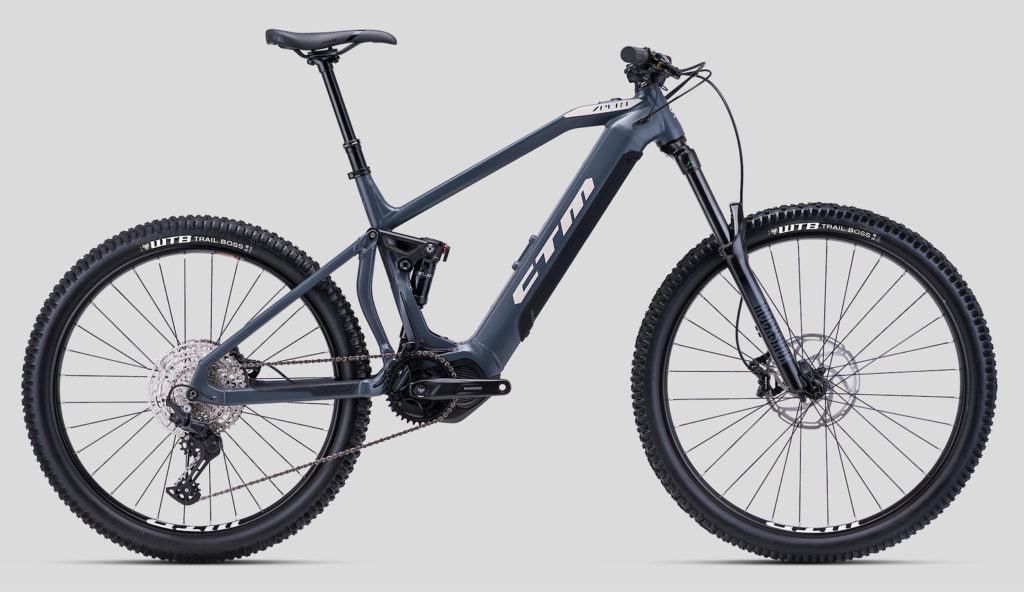

SWITCH XPERT

SPECIFICATIONS
Frameset
Frame
Hydroformed 6061 alloy, molded chainstay protection
Fork
RockShox 35 Gold RL, DebonAir spring, 42mm offset, 160mm
Shock
RockShox Deluxe Select+ RT, 205mm x 65mm
Motor
Shimano STEPS EP8, 250W, 85 Nm max torque
Battery
Shimano STEPS E8036, integrated, removable, 630 Wh
Wheels
Hubs
Shimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Wheels
WTB ST i35 TCS 2.0, 35mm inner width, 32 hole
Wheel Size
29" 27.5"
Tires
WTB Trail Boss, G2, 2.6""
Drivetrain
Chain
460mm, Upper slider, Shimano EM600, 36 tooth, KMC X11e, 11-speed
Crank
Shimano EM600, 165mm length
Bottom Bracket
8mm drop
Rear Derailleur
Shimano Deore M5100, 11-speed
Shifters
Shimano Deore M5100, 11-speed
Components
Brakeset
Tektro Orion, 4-piston, 203mm rotors, Tektro Orion
Handlebar
CTM HB352, 780mm width, 35mm clamp diameter
Saddle
WTB Volt
Seatpost
KS Rage-i dropper, 31.6mm, Single bolt, 31.6mm, Single bolt
Drop:
125mm (MD)
150mm (LG)
170mm (XL)
Stem
CTM ASM04, 35mm bar clamp
Headset
FSA Orbit 1.5
